Heat Pump Energy Savings | Improving HVAC System

Heat Pump Solution To Improve Space & Water Cooling & Heating

CRYOGENX4 is an advanced, multi-patented state-of-the-art molecular nanotechnology (in liquid form) designed and manufactured to boost the cooling and heating performance and efficiency of any HVAC/R/HP system. The result is a significant reduction in the cost to operate (kW/ton) the equipment, increased overall capacity (tons), and improved coefficient of performance (COP).

Installed into the suction port(s) using a refrigerant oil pump (photo) while the system is running, CRYOGENX4 requires no modifications or alterations to the system. It’s the latest and most effective thermal transfer technology solution available, derived from 30-years of advanced technologies we have brought to the market.

CRYOGENX4 has been proven to dramatically increase cooling and heating efficiency across tens of thousands of units for companies around the world and is backed up with numerous government and world-class laboratory tests. Efficiency gains are accomplished by addressing the main factors of thermal performance drop offs including thermal degradation from oil film buildup, internal lubrication and friction issues, increased metallic wear and tear, high operating temperatures and pressures, as well as increased run time.

How the technology works

Insulating stagnant oil quickly collects on the internal surfaces of the coils

In just a few years, heat transfer ability is diminished & refrigerant flow is slowed causing issues and robbing performance while increasing system operating costs

Oil is removed following CRYOGENX4 treatment and returned to the sump

Coil surfaces are activated to create a more thermo-conductive metal that exchanges heat faster while lasting for the remaining life of the system.

How It works and what you need to know

Oil migrates around seals in the compressor and mixes with refrigerant where it is carried throughout the system.

The migrating oil is attracted to the internal metallic surfaces where it quickly collects, creating an insulating barrier.

In just a few years, heat transfer ability is diminished and laminar flow is impeded. This causes issues and robs performance while increasing system operating costs.

When CRYOGENX4 is introduced into the system, the strongly polarized molecules break through the insulating oil, lifting it from the surfaces and returning it to the oil sump.

CRYOGENX4 stabilizes and activates the coil surfaces to create a more thermo-conductive metal that exchanges heat faster while lasting for the remaining life of the system.

Inside the compressor, CRYOGENX4 enhances the lubricity of the existing oil, reducing wear and tear on all the moving parts and reducing heat build-up inside the compressor.

Sustainable, Scalable, and safe
Installed once, lasts for remaining lifetime of system
Extends equipment life with no waste of natural resources
No downtime to business operations when implementing
Industry's most cost-effective ROI
Tested and proven effective by the World's leading laboratories
Once "fully seated", not affected by leaks or changing of refrigerants
Reduces carbon footprint in an earth-friendly, cost-effective manner

Many Ways CRYOGENX4 Works To Improve Performance

Evaporator

Improved laminar flow of refrigerant inside the
heat exchange coils

More direct contact of refrigerant with tube walls

Stabilized metal surfaces improves heat transfer and provides colder, drier supply air

Better functioning of the expansion valve

Condenser

Transfer of heat from refrigerant to outside air is improved

Moisture removed from internal spaces faster

Compressor

Extended compressor life through reduced friction and wear & tear

Improved overall performace, less energy consumption, cooler and quiter operation with less oil blow-by

A Multi-patented HVAC/R/HP Performance Enhancement Technology That’s Cost Effective

Invented and patented to improve thermal efficiency in all types of HVAC/R/HP systems.
Laboratory tested by DOE (FEMP), UL, Texas Oil Tech, NSF, and Electrolux Labs.
Dozens of successful third-party field tests conducted in all types of conditions on equipment ranging from 3,000-ton chillers down to a home refrigerator.
Tested as “fully compatible” with all prevalent refrigerants and lubricants (to include ammonia systems) by Texas Oil Tech Laboratories.
In heat pumps and other HVAC/R equipment, project paybacks average from 6-months to 2-years

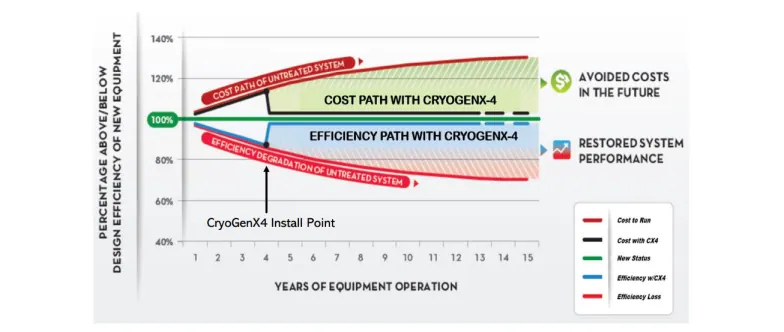

Brings Drifting Cost & Performance Paths Back To Design

Average Internal Rate-of-Return is >50%

Project Paybacks Range from 6-mos to 2-yrs

(by comparison, LED lighting averages 2-3 yrs; Solar averages 7-8 yrs with degrading effectiveness over time)

Safe and effective technology

TRI-S has been in business for more than 25 years. Over that time, the Tri-S products have been tested safe and effective by top laboratories.

All TRI-S products are made in the USA using chemicals that occur abundantly in our environment and that are naturally safe for humans. Should a spill occur during the installation process, clean-up procedures are the same as for refrigerant oil as outlined in the TRI-S Material Safety Data Sheet (available upon request). All TRI-S products meet or surpass HVAC/R compatibility standards with all prevalent refrigerants and refrigerant lubricants on the market as of 31 December 2022.

All TRI-S products are manufactured in America under current International Organization for Standards (ISO) guidelines for repeatable quality. Following these stringent standards protects against defects or causing any type of adverse reactions within HVAC/R/HP systems.

Critical Specialized Testing Performed on the Technology

The ARI / ASHRAE four ball bearing test is designed to find the point at which a lubricant or surface science breaks down. During the test, downward pressure is applied to four ball bearings that are in motion until the bearings weld from friction. This test is important because it shows the superiority of the TRI-S product as a lubrication aid that drives performance improvements. In the Texas Oil Tech study performed on our products, within minutes of coating the metal ball bearings, the TRI-S product provided exponentially better lubricity than standard refrigerant oil – 4,900% to be exact. Better lubrication by sealing and protecting the metal surface and enhancing thermal transfer extends the life of equipment.

Testing Results Closely Mirror Ashrae Predicted Losses Over Time

Thermal Degradation in HVAC/R/HP Systems

Oil fouling of the heat transfer surfaces of air conditioning, heat pump, and refrigeration systems will cause a loss of about 5-7% efficiency in the equipment’s first year of use, 3-5% the second year, and 2% per year each subsequent year…

TRI-S SOLUTION CHECKS ALL THE BOXES OF ANY ENERGY SAVING PROEJCT

Compatible with all refrigerants, including newer low global warming potential (GWP) refrigerants
Simple integration with incumbent facility HVAC and refrigeration systems
Maximizes air-source Heat Pump performance in colder climates, increasing output temperatures.
Compatible with all types of integrated peak demand management devices, reducing hard starts
Installed once and lasting for remaining system life, CRYOGENX4 reduces OpEx & maintenance costs
CRYOGENX4 works in any size HVAC/R/HP system that uses oil-lubricated compressors
Compatible with all types of energy usage data capture systems
Reduces unscheduled maintenance calls by up to 20% or more
System efficiency gains proven using the DOE-approved International Performance and Measurement & Verification Protocol (IPMVP) for before and after CRYOGENX4 installation.

Validating Effectiveness Of The Solution

The IPMVP directs the measurement of four (4) key parameters of an HVAC/R/HP unit, while taking care to try and replicate as close as possible the outdoor air and internal return air temperatures directly at the unit in both the baseline and post periods.

Larger units also need to be measured with the same number of compressors running at the same load % (if the unit has variable speed compressors).

The 4 measurements include:

Power readings (volts and amps)
Air volume across the coils as measured in cubic feet per minute (CFM)
Dry bulb delta between supply and return air temperatures (Delta-T) measured at the same point in baseline and post
Enthalpy delta using difference between wet bulb readings of supply and return air temperatures baseline and post

Scalable & Ready for Immediate Deployment

CRYOGENX4 can be installed quickly and easily into any size or type of HVAC/R/HP that has a suction port while it is running. TRI-S can arrange to do the installations, or we can train / certify company technicians to do them. DX systems are dosed and treated based on tonnage. TRI-S always maintains an inventory capable of treating more than 50,000 tons of cooling equipment. Since all the chemicals used in our patented formulations are readily available in America, supply chain problems are not an issue. We can exponentially expand our inventory in 3-4 weeks if necessary. CRYOGENX4 is guaranteed to produce rapid results by treating the inside of the cooling systems. However, to maintain those results over time, regular preventative maintenance needs to be performed on the equipment to keep it operating properly on the outside.

Tri-s Offers Multi Project Funding Options

No upfront capital required, flexible 36-60-month contract terms
Cost savings through reduced energy consumption
Install energy solutions today, but delay EME payments up to 24 mos

TRI-S Technologies has multiple funding options for getting your energy conservation projects moving forward – most of which require little to no cash up front.

Standard transaction = 40% deposit / 60% at completion
Same-as-cash transaction = 0-25% deposit / balance spread out over up to 36-months
Utility Company Financing = Constellation Energy EfficiencyMade-Easy (EME) Program

Simplest way to achieve your energy saving goals!
